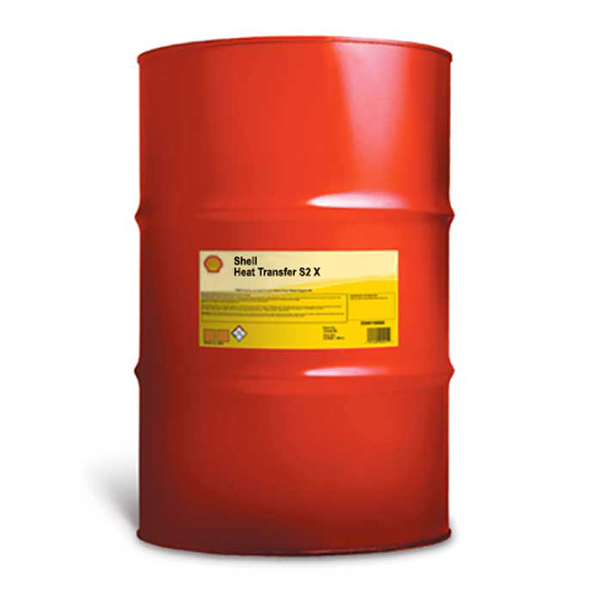

Shell Heat Transfer Oil S2 X
High Performance Heat Transfer Fluid
Shell Heat Transfer Oil S2 X is a premium quality heat transfer fluid for use in indirectly heated closed heat transfer systems. It is based on carefully selected, highly refined mineral oils chosen for their ability to provide superior performance in heat transfer systems and contains an oxidation inhibitor to provide long service life.
Performance, Features & Benefits
- Extended maintenance intervals
Shell Heat Transfer Oil S2 X is based on carefully selected highly refined mineral oils and resists oil cracking, oxidation and thickening. This provides extended oil life, provided efficient fluid heating and good pump circulation is ensured, such that film temperatures on the heater surface do not exceed the limits below.
- System efficiency
Low viscosity enables excellent fluidity and heat transfer over a wide temperature range. Shell Heat Transfer Oil S2 X also has a low vapour pressure so resists cracking. This minimizes the formation of volatile decomposition products; these would require recovery via expansion chamber and condensate collector.
- Wear protection
Shell Heat Transfer OIL S2 is non-corrosive and has high solvency – this reduces deposit formation by holding oxidation products in solution and keeping internal surfaces of heat exchangers clean.
Main Applications
- Industrial heat transfer systems
For use in closed heat transfer systems used in chemical and process plant, textile manufacture etc. where the oil is circulated in a pumped system operating under atmospheric pressure with or without an inert gas blanket.
Shell heat Transfer Oil S2 X can be used in high temperature continuous heat transfer equipment with the following application limits:
Max. film temperature : 315°C
Max. bulk temperature : 290°C
- Classified as ISO 6743-12 Family Q
- Meets DIN 51522 requirements
