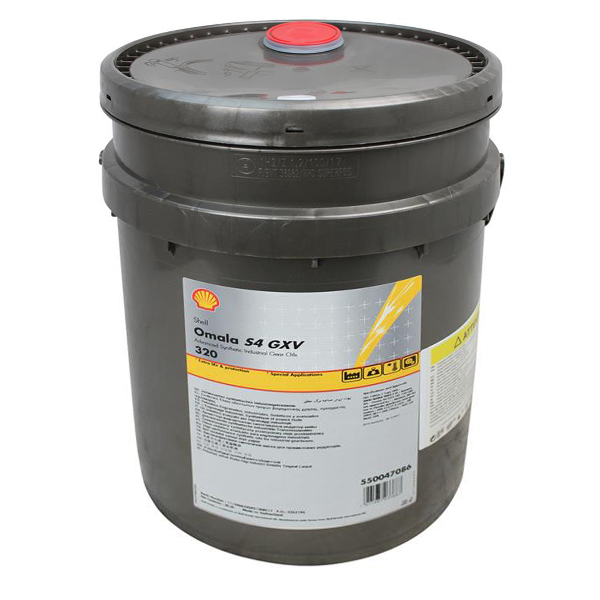

Shell Omala S4 GXV 320
Advanced Synthetic Industrial Gear Oil
Shell Omala S4 GXV 320 is an advanced synthetic heavy duty industrial gear oil, approved by Siemens AG, offering outstanding lubrication performance under severe operating conditions, including reduced friction, long service life, high resistance to micro-pitting for optimal gear protection and superb compatibility with seals.
Main Applications
- Gear motor systems and other inaccessible installations
Shell Omala S4 GXV 320 is particularly recommended for certain systems where extra long life is required, maintenance is infrequent or systems are inaccessible.
- Excellent compatibility with seals, paints and sealants
Recommended for industrial reduction gear systems using a wide range of seals, including nitrile rubber and fluoro-elastomers. Meets the demanding requirements of Siemens for Flender gearboxes and gear motors.
- Enclosed industrial gear systems
Recommended for industrial reduction gear systems operating under severe operating conditions, such as high load, very low or elevated temperatures and wide temperature variations.
- Other applications
Shell Omala S4 GXV 320 is suitable for lubrication of bearings and other components in circulating and splash-lubricated systems.
For highly loaded worm drives the Shell Omala “W” series oils are recommended. For automotive hypoid gears, the appropriate Shell Spirax Oil should be used.
- ISO 12925-1 Type CKD
- ANSI/AGMA 9005-F16
- Siemens AG – Omala S4 GXV ISO 150 – 680 are approved by Siemens AG for use in Flender gearboxes and gear motors.
- DIN 51517-3 (CLP)
- China National Standard GB 5903-2011 CKD
- AIST (US Steel) Req. No. 224
