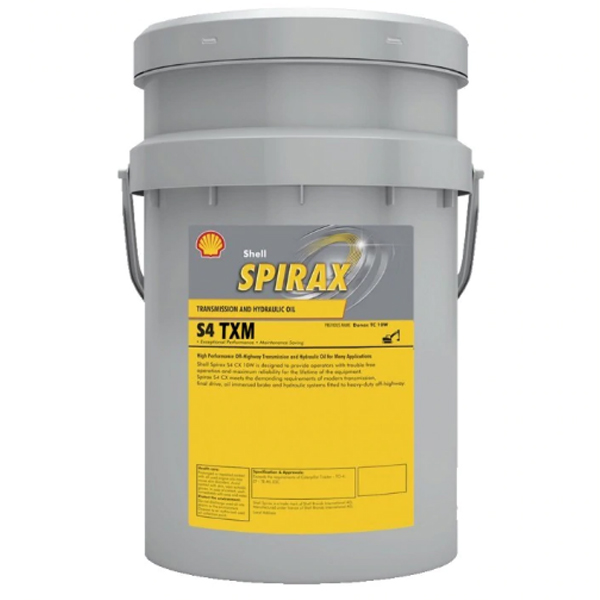

Shell Spirax S4 TXM
Premium SAE 10W-30 Multi-functional Tractor Transmission and Hydraulic Oil
Premium “universal tractor transmission oil” (UTTO) designed for use in transmissions, hydraulic systems, oil immersed brakes and other ancillary systems fitted to agricultural tractors and off-road equipment. Spirax S4 TXM is recognized by leading agricultural equipment manufacturers and suitable for use in most modern equipment.
Main Applications
- Agricultural tractor transmissions
Shell Spirax S4 TXM has been evaluated against the latest requirements of leading tractor and transmission manufacturers including John Deere, Massey Ferguson, CNH and ZF.
- Hydraulic systems
Shell Spirax S4 TXM is ideally suited for hydraulic systems of tractors and ancillary equipment. Spirax S4 TXM is formulated using specially selected additives and high-quality base oils to provide good low-temperature fluidity and wear protection.
- Oil immersed brakes
Special friction modifying additives are included in Spirax S4 TXM to ensure optimum performance of oil immersed brakes whilst minimizing brake noise. Spirax S4 TXM is recommended for most wet brake systems fitted to agricultural tractors and off-highway construction equipment.
- Suitable for use in applications where Allison C-4 type fluids are required.
- Spirax S4 TXM can be used when a SAE J 306 85W grade is recommended
- Case New Holland MAT-3525, M2C-134 A-D, FNHA-2-C.201.00
- John Deere JDM-J20C
- Massey-Ferguson M1143, M1145
- Volvo WB 101, Transmission Oil 97303:015
- ZF TE-ML 03E, 05F, 06D, 06K, 06M, 06N, 06R, 17E, 21F
- Caterpillar TO-2
- Komatsu – recommended for use in certain construction equipment
- Dana-Spicer mechanically controlled transmissions
- Shell Spirax S4 TXM is also recommended for use in Case equipment where fluids meeting MS 1207, 1209 or 1210 are specified.
- API Gear Performance: API GL-4
