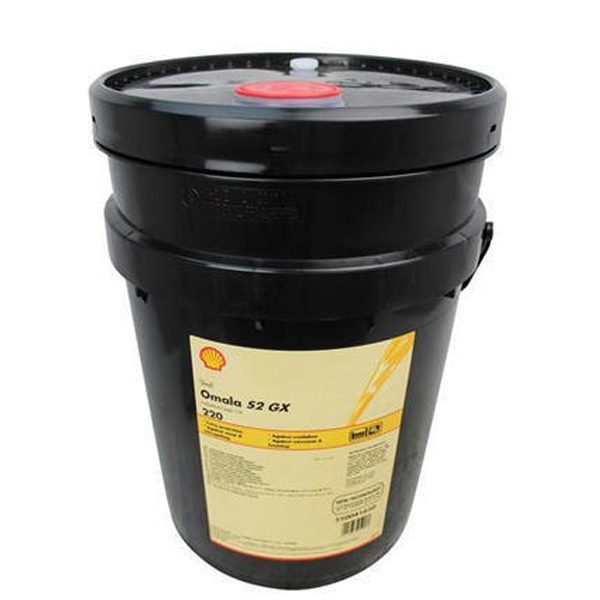

Shell Omala S2 GX 220
Industrial Gear Oils
Shell Omala S2 GX oils are high-quality extreme-pressure (EP) oils designed primarily for the lubrication of heavy-duty industrial gearboxes. Their high load carrying capacity, protection against micropitting and compatibility with seals and paints, combine to offer excellent performance in enclosed gear applications.
Main Applications
- Enclosed industrial gear systems
Shell Omala S2 GX technology provides an effective extreme pressure (EP) formulation designed specifically for enclosed industrial gearboxes using steel-on-steel, spur, helical, or planetary gear drives, including highly loaded systems with splash or forced circulation systems.
Shell Omala S2 GX oils are also suitable for the lubrication of non-geared applications, that include bearings and other steel-on-steel components with splash or forced circulation systems.
- Other applications
Shell offers a wide range of products for other gear applications that have their own specific requirements.
- Shell Omala S4 GXV is recommended for gear systems where a synthetic lubricant is specified, when the longest lifespan is required, or when operating in environments that experience large temperature variations.
- Shell Omala S5 Wind 320 is recommended for wind turbine main gear drives.
- Shell Omala S4 WE, Shell Morlina S4 B and Shell Omala S1 W are recommended for worm-wheel drives.
- ISO 12925-1 Type CKD (ISO 150)
- ISO 12925-1 Type CKC (ISO 150)
- DIN 51517-Part 3 CLP (ISO 150)
- AGMA EP 9005-F16 (ISO 150)
- AIST (US Steel) 224 (ISO 150)
- Fives Cincinnati: P-77 (ISO 150)
- Siemens AG
Shell Omala S2 GX 150 is approved by Siemens AG for use in Flender, helical, bevel, planetary and marine gear units.
